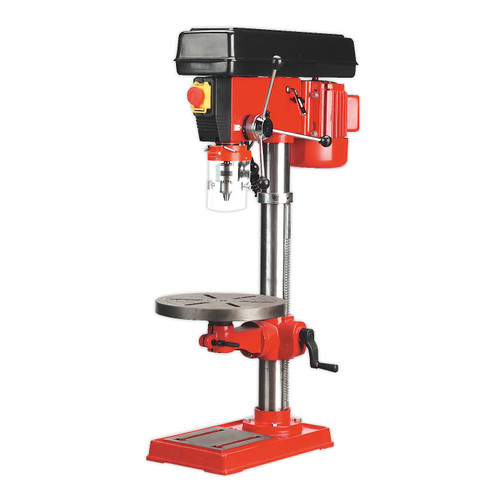

Choose The Sealey PDM155B Pillar Drill Bench for long and reliable performance
The Sealey PDM155B is a 16-speed Pillar Drill with a heavy-duty aluminium-bodied motor for long and reliable performance. The PDM155B is fitted with an integral work light that illuminates the drilling table giving the operator a clear view of the drilling process. The no-volt release switch prevents inadvertent start-up and the pulley cover is protected by a microswitch to prevent the drill from operating when the cover is open.
Features:
- Supplied with flip-up chuck guard
- Large sized square table fitted with precision rack and pinion height adjustment
- Features heavy-duty aluminium-bodied motor for long and reliable performance
- One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop
- Fitted with an integral work light that illuminates the drilling table giving operator a clear view of the drilling process
- No-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open
Specification:
- Swing: 460mm
- Weight: 62kg
- Spindle Travel: 80mm
- Number of Speeds: 16
- Collar Diameter: 60mm
- Overall Height: 1050mm
- Column Diameter: 80mm
- Spindle Nose Taper: MT2
- Input Power: 550W - 240V
- Motor Power: 370W - 240V
- Speed Range: 190 - 3000rpm
- Overall Base Size: 495 x 290mm
- Spindle Centre to Colomn: 190mm
- Drilling Capacity (Chuck Size): 16mm
- Working Base Surface Size: 205x 200mm
- Working Table Surface Size: 290 x 290mm
- Maximum Distance Spindle to Base: 600mm
- Maximum Distance Spindle to Table: 475mm
SKU: SEA-PDM155B
