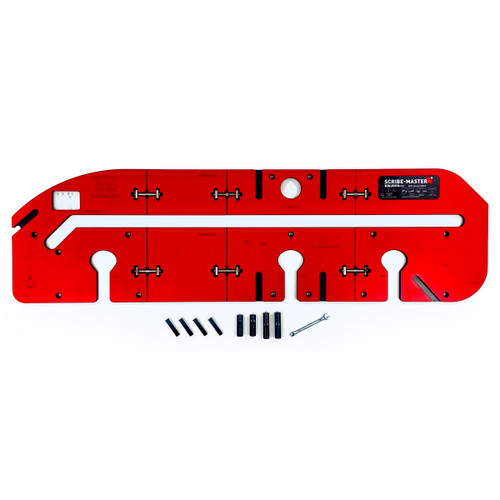

This Scribe-Master Adjustable Length Worktop Jig Is Ideal for Various Worktop Materials
The Scribe-Master KWJ900PRO is an innovative 150-900mm adjustable kitchen worktop jig, featuring the advanced Square Window Sight Line Technology. Designed for precision and ease, this worktop jig simplifies your cutting process with its easy patent-pending system. Just mark your cut line with your square, align the line with the window in the jig, and make your cut - no more guessing or extra measurements from the back end of the jig.
Features:
All adjustments are made from the front edge, eliminating discrepancies from scribing or non-standard width worktops using the Sight Line Technology Window
Easy Set Reference Window: Quickly set up for any backset by aligning to a measured line
Five Backset Options (3, 5, 10, 24, 35mm) to accommodate new materials, edge profiles, and trends
Configurable as a 300mm, 750mm, or 900mm jig
Breaks down to 35cm x 35cm x 6cm for easy storage and transport
Includes 2 separate 3/4" BSP/Door Hinge & Dog Hole jigs
Allows cutting worktops flush with door faces for handleless contemporary styles without extra measuring
Single Pass Joint Cutting minimises router strain and extends cutter life for narrower backsets and thinner worktops
Cuts a full male and female joint in 15 minutes, including setup time
Suitable for compact laminate, composite, solid wood, and chipboard laminate
No need for alignment pins for various worktop widths
Simple and intuitive - measure, mark, clamp, and cut
Offset Cams: Unique backset wedges for consistent, easy setting
Edge Profile Compatibility: Covers square edge, small radius, post form radius, and bullnose profiles
Clamp Recesses: Designed for below-the-surface clamping for unrestricted routing with plunge saw clamps
Engraved Markings: Clear reference points for precise work.
Comes With:
- 6 Fasteners, 4 x ABS Plastic Pins, 4 Backset Pins, Spanner
Specification:
- Length - 985 mm
- Width - 335 mm
- Thickness - 12 mm
- End Cut - 45 degrees
- Corner Radius - 40 mm
- Corner Radius - 100 mm
- Corner Radius - 400 mm
- Corner Mitre Joint - 45 degrees
- Female cut material width loss (inset) variable
- Bolt recesses - 3
- Bolt recess centres - 175 + 175 mm
- Bolt recess width -14 mm
- Guide bush - 30 mm (not included)
- Plunge router (not included) - 1/2-inch (min. 1300 watts)
- Cutter - 12.7 mm x 50 mm cut (not included)
- Clamps - Two (not included)
- Weight - 4.73 kg
