Achieve a 66mm maximum depth of cut with this Compact Circular Saw from Makita

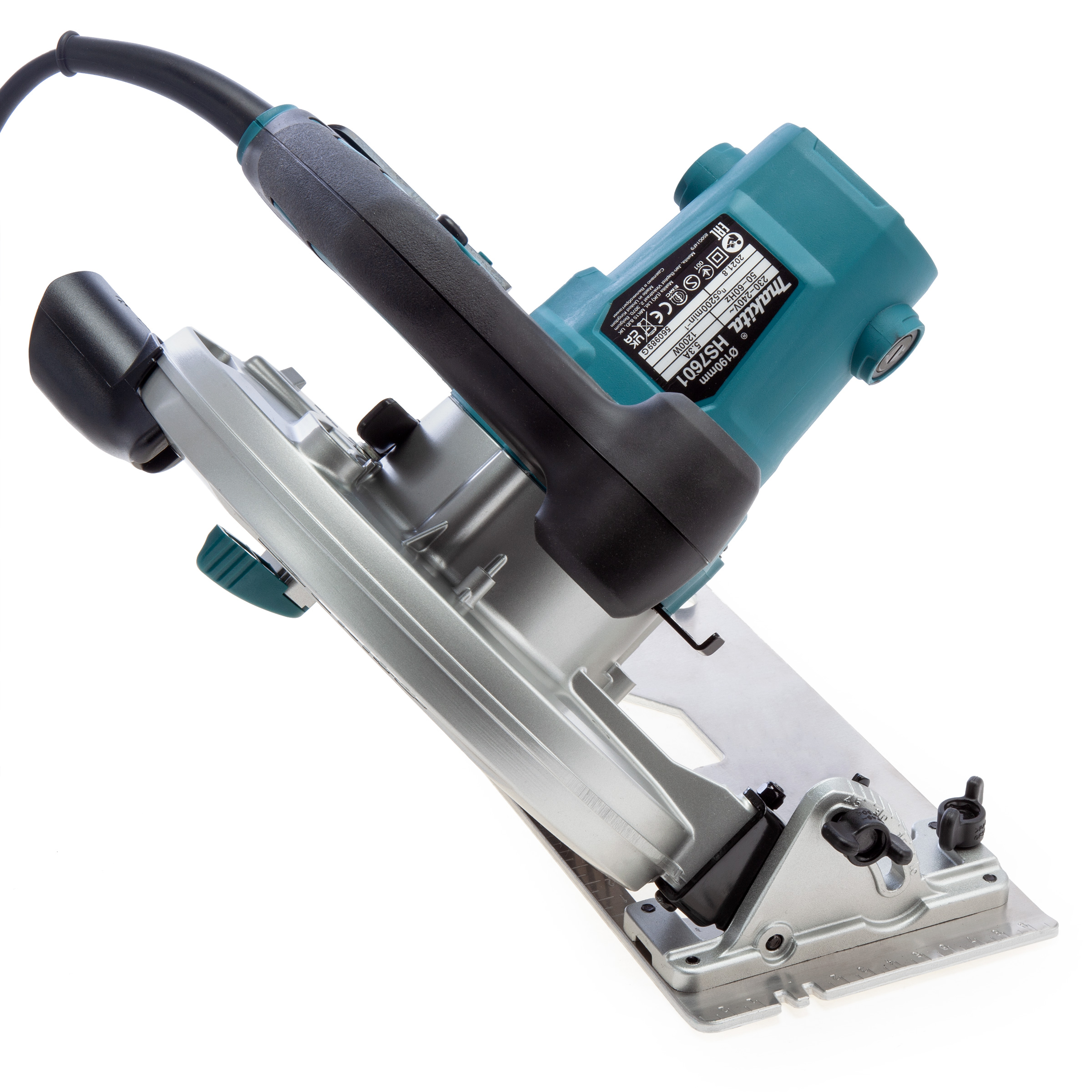

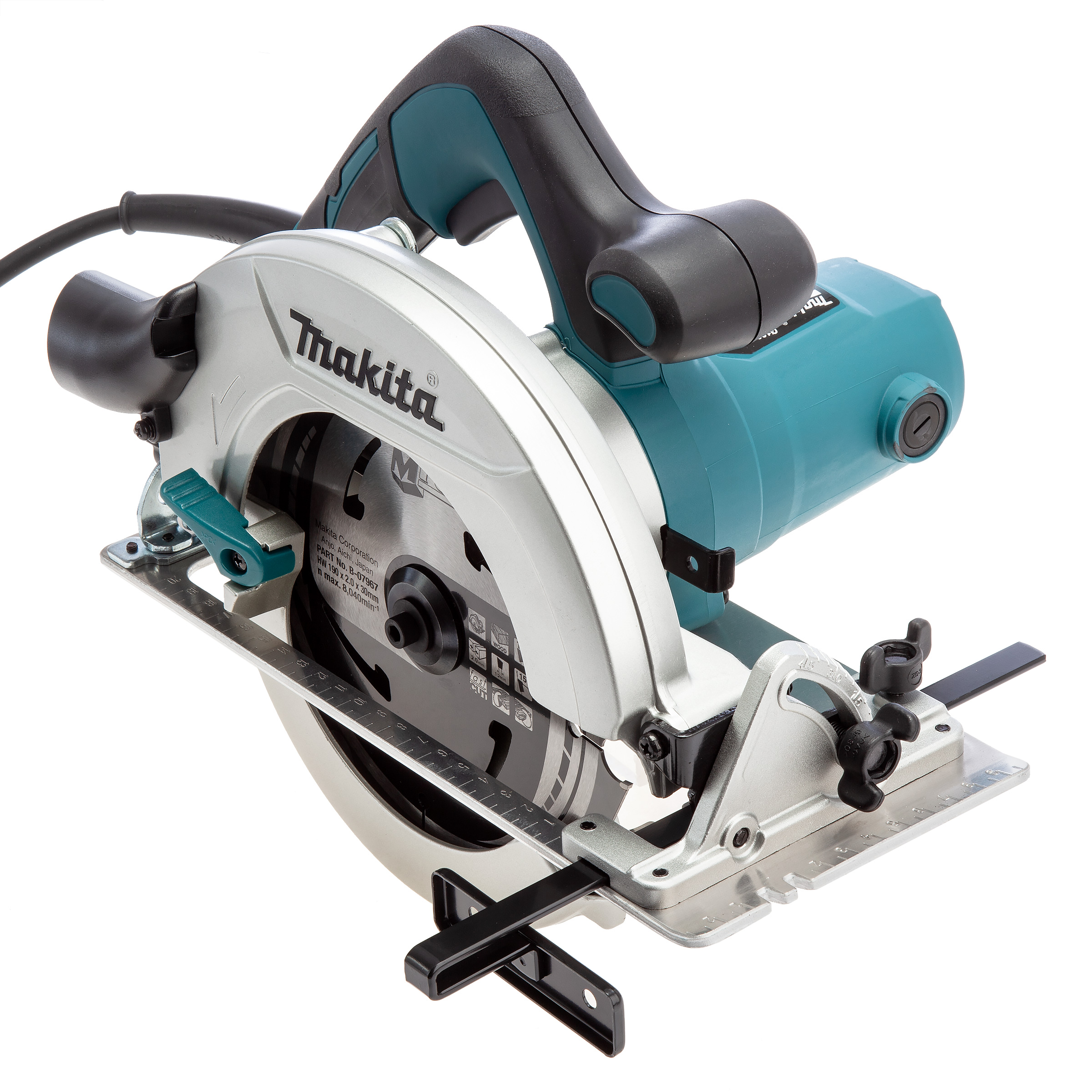

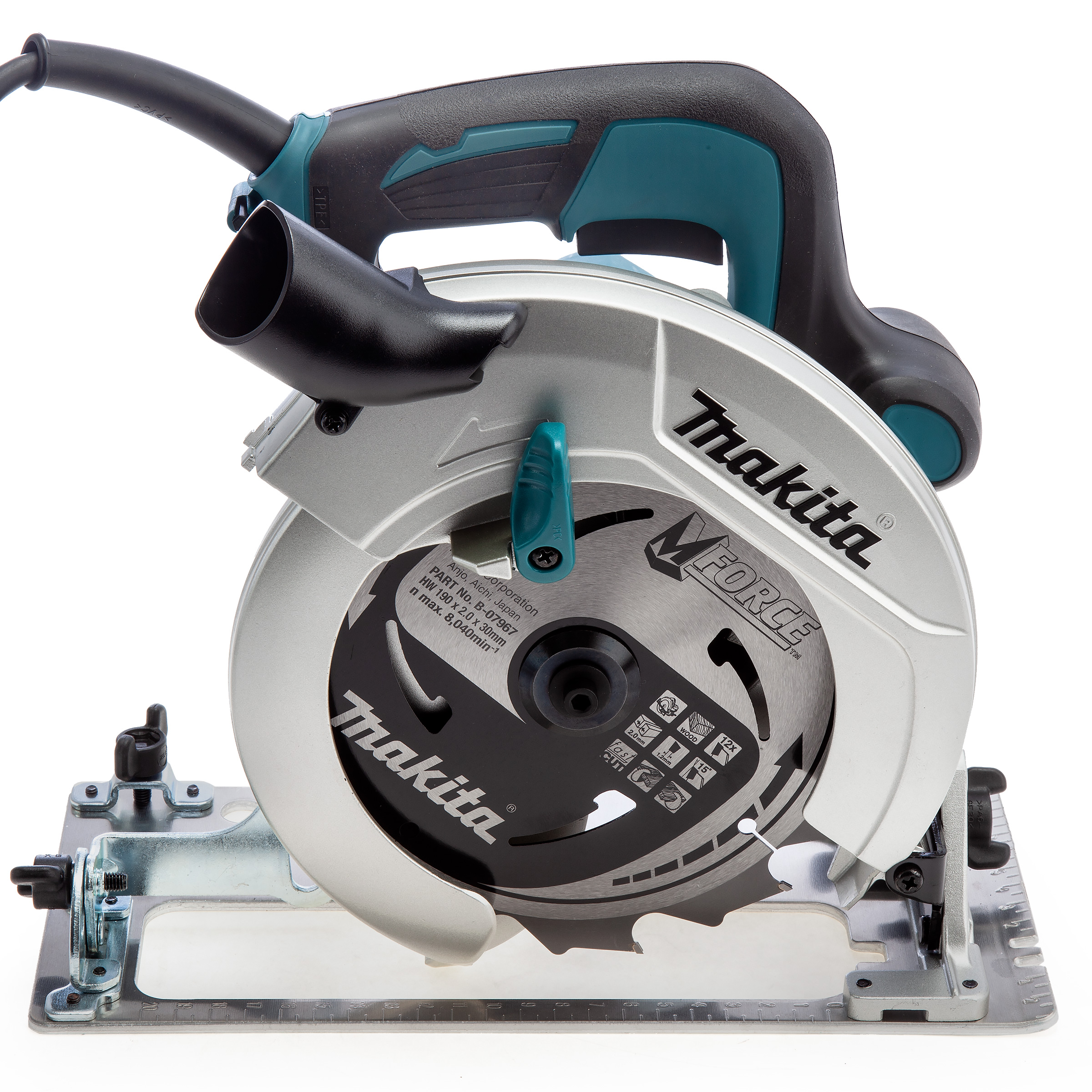

The Makita HS7601 Circular Saw is a compact and lightweight tool giving 1200 watts of continuous input. This model succeeds the popular 5704R and has a number of improvements and refinements e.g. lighter and more compact. The rear dust exhaust port is useful in helping maintain a clean, safe and healthy working environment. This model is compatible with Makita guide rails to help ensure a straight, precise cut every time.
Features:
- Double Insulation
- Compact and lightweight design
- New aesthetic design
- Compatible with Guide Rail
- Rear dust exhaust port
- Connectable to dust extractor
- Rear angular guide for smooth and precise adjustment of bevel angle
- Single action lever for quick adjustment of cutting depth
- Ergonomic soft grip for extra comfort
- Flat motor housing end making the tool more stable when changing blades
- Aluminium die-cast safety cover
- Aluminium base plate
Comes with:

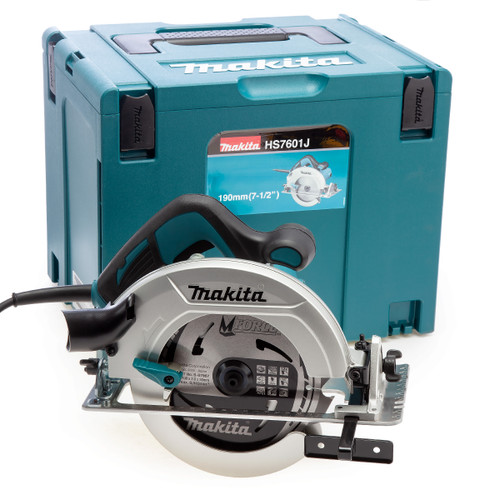

- Makpac connector carry case
Specification:
- Depth of Cut @ 90°: 66 mm
- Blade Diameter: 190 mm
- Depth of Cut @ 45°: 46 mm
- Bore Diameter: 30 mm
- Noise sound pressure: 87 dB(A)
- Noise sound power: 98 dB(A)
- Noise K factor: 3 dB(A)
- Input Wattage: 1200 w
- No Load Speed: 5200 rpm
- Vibration K factor: 1.5 m/sec_
- Vibration: Cutting Wood: 2.5 m/sec_
- Overall length: 309 mm
- Net weight: 4.0 kg
SKU: MAK-HS7601J-240V
