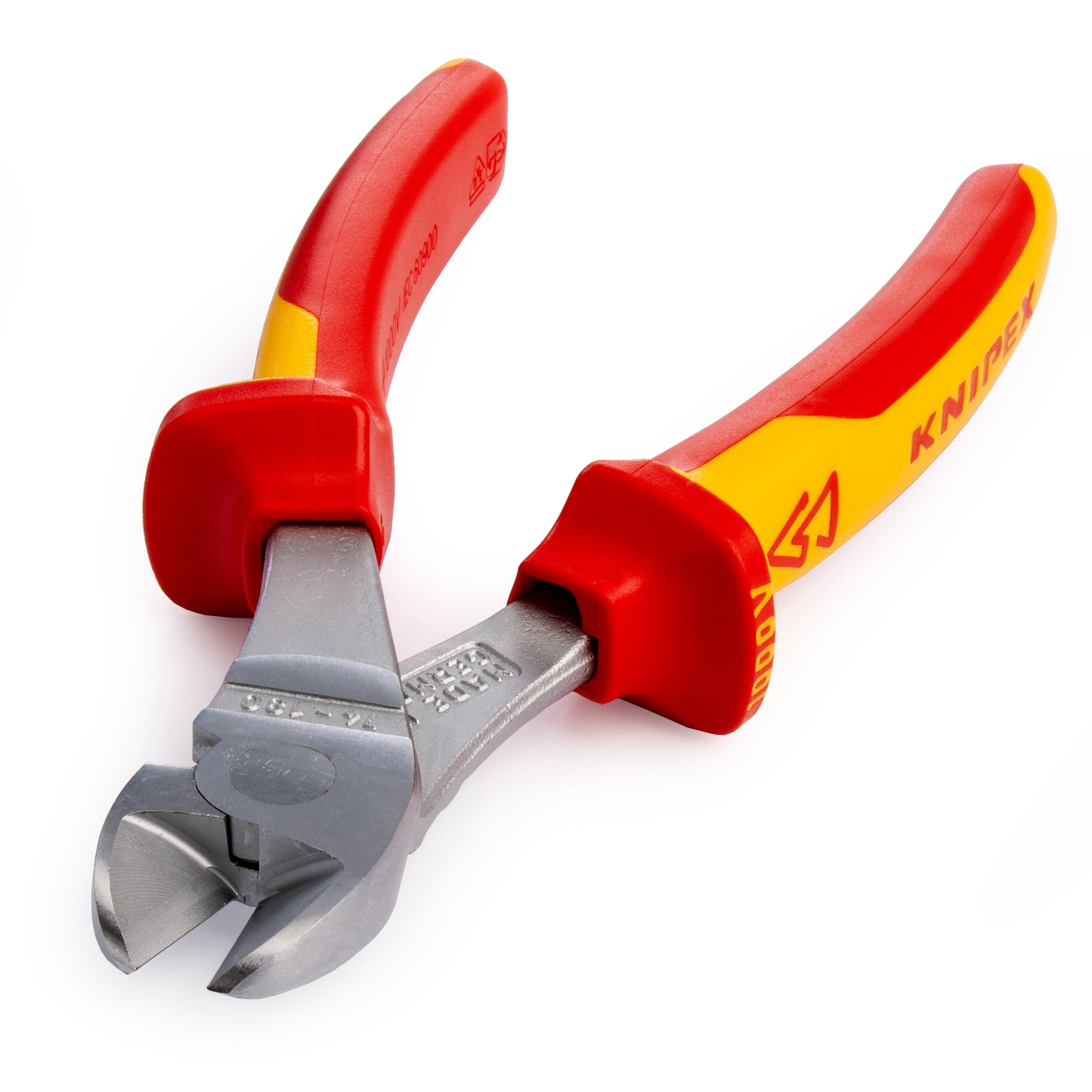

Knipex 74 06 180 SB High Leverage Diagonal Cutters VDE 1000V
The Knipex 7406180SB High Leverage Diagonal Cutters have a chrome plated head and VDE-tested, insulated handles with multi-component grips. Due to the design, 20% less effort is required compared to conventional diagonal cutters of the same length (180mm). With integrated forged joint axle.
Features:
- With integrated forged axle for heaviest duty

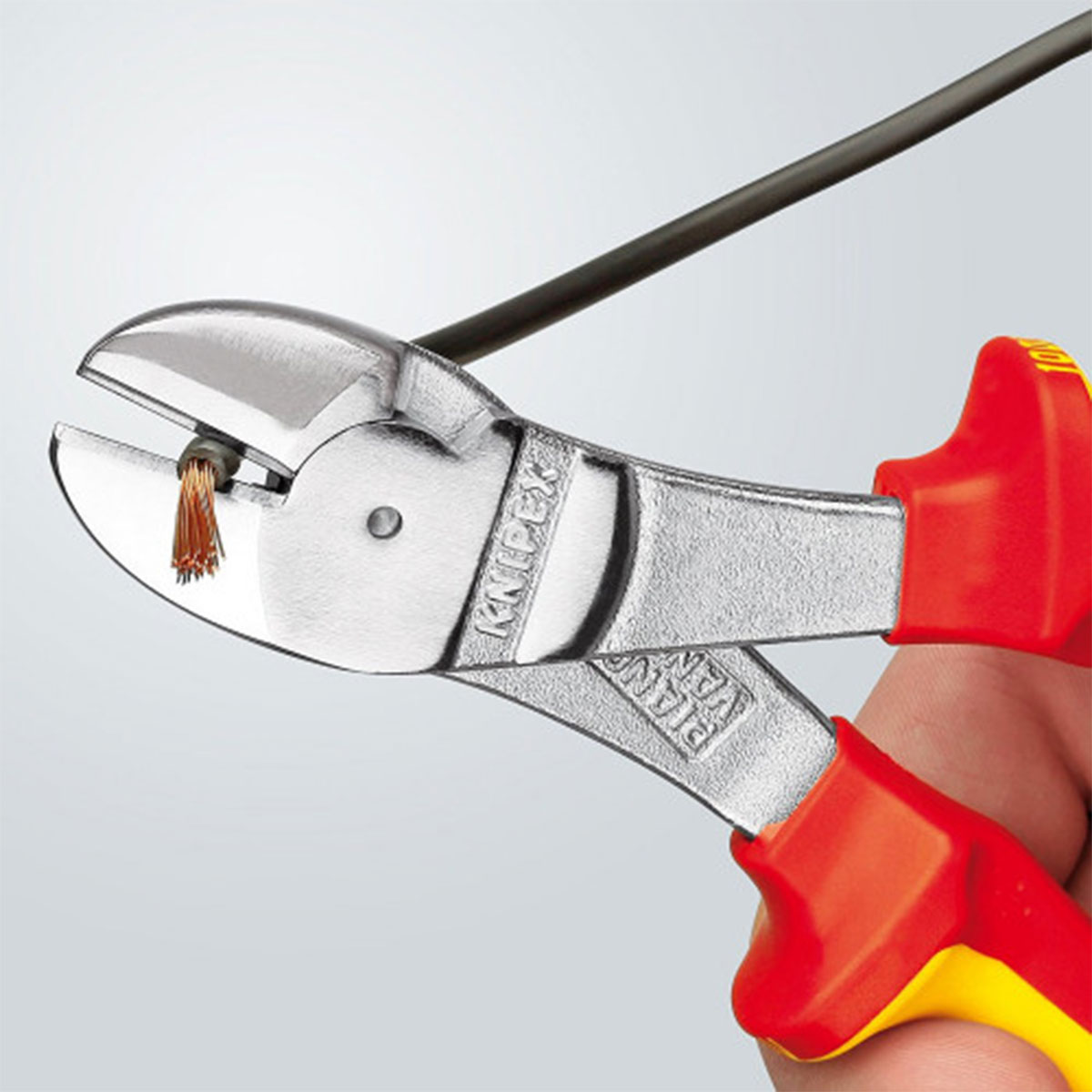

- Suitable for all types of wire including piano wire
- High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
- Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
- Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
Specification:
- Part Number: 74 06 180
- Pliers: chrome plated
- Handles: insulated with multi-component grips, VDE-tested
- Head:
- Insulation standard: IEC 60900 DIN EN 60900
- Cutting capacities medium hard wire (diameter): 3.8mm
- Cutting capacities hard wire (diameter): 2.7mm
- Cutting capacities piano wire (diameter): 2.2mm
- Length: 180 mm
- Net weight: 0.280kg
