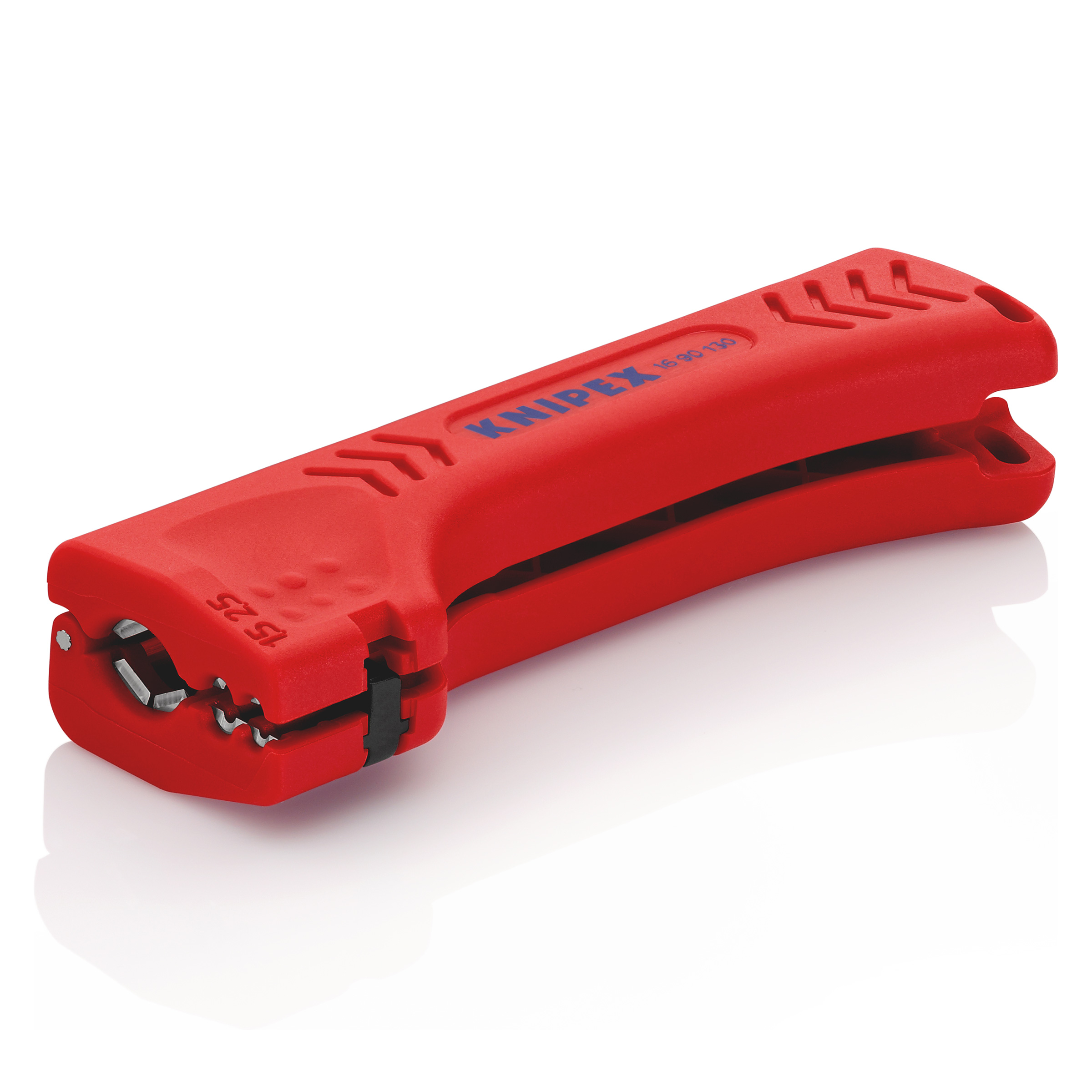

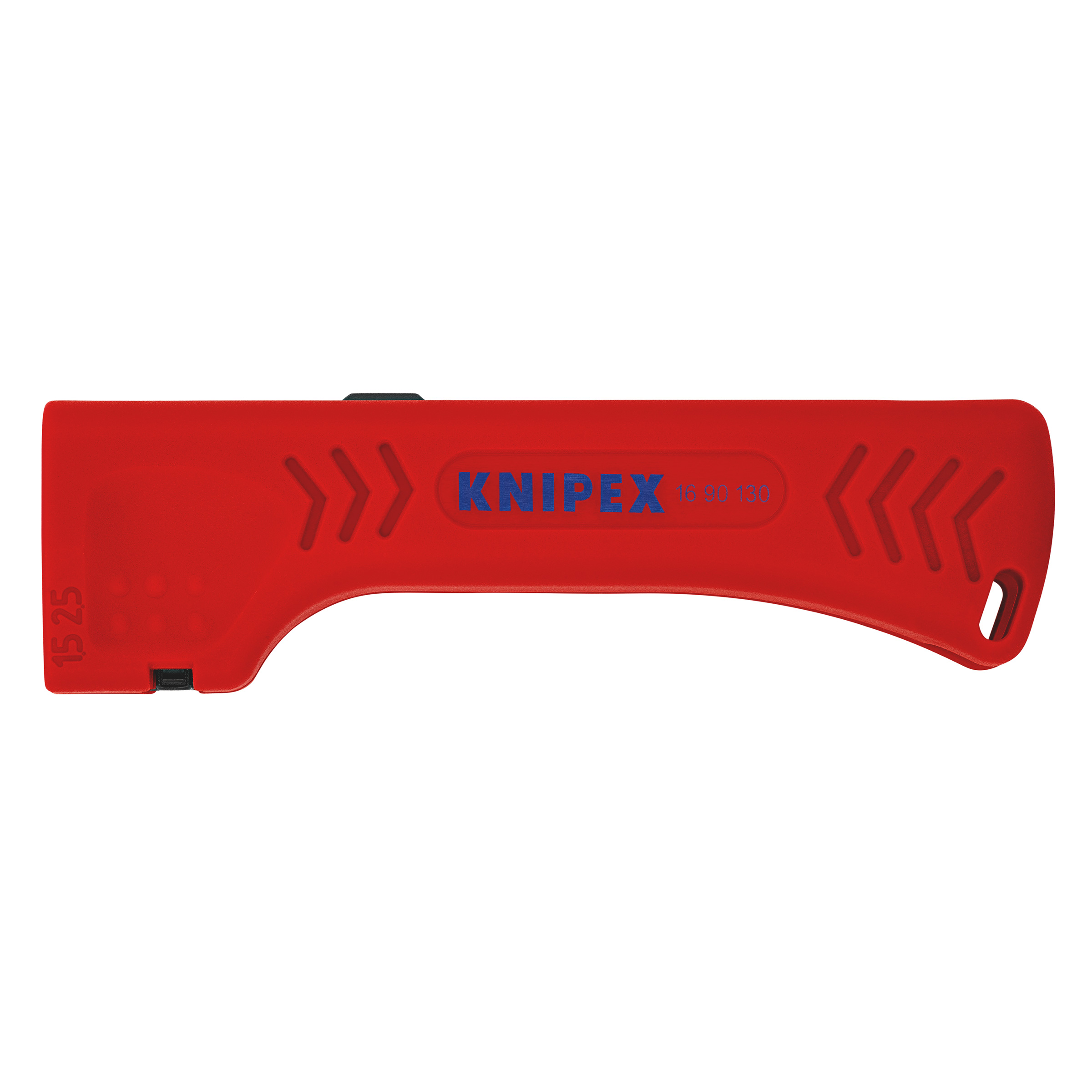

Universal Stripping Tool for building and industrial cables with a fastening device on the end of the handle
The Knipex 1690130SB (carded) Universal Stripping Tool measures 130mm in length, great for confined and difficult to access work areas. Designed to strip all common round and damp-proof installation cables between 8.0 - 13.0 mm dia. (e.g. 3 x 1.5 mm² up to 5 x 2.5 mm²).
Features:

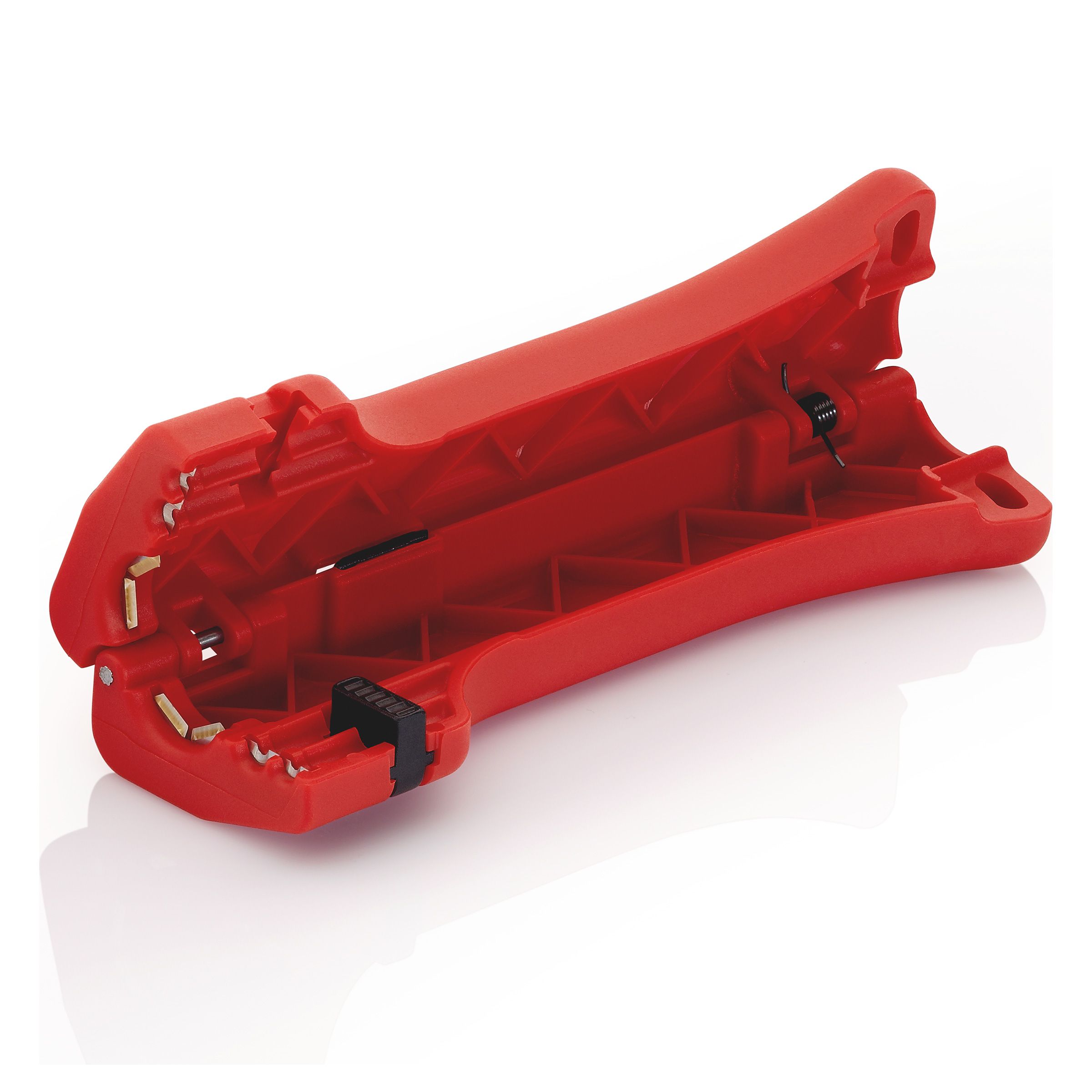

- With opening spring and locking device
- Also for use in conduit and distribution boxes
- Body: plastic, fibreglass-reinforced
- For use in confined and difficult to access work areas
- Specially suitable for larger cross-sections and for difficult insulating materials
- No adjustment of blades to cutting depth required

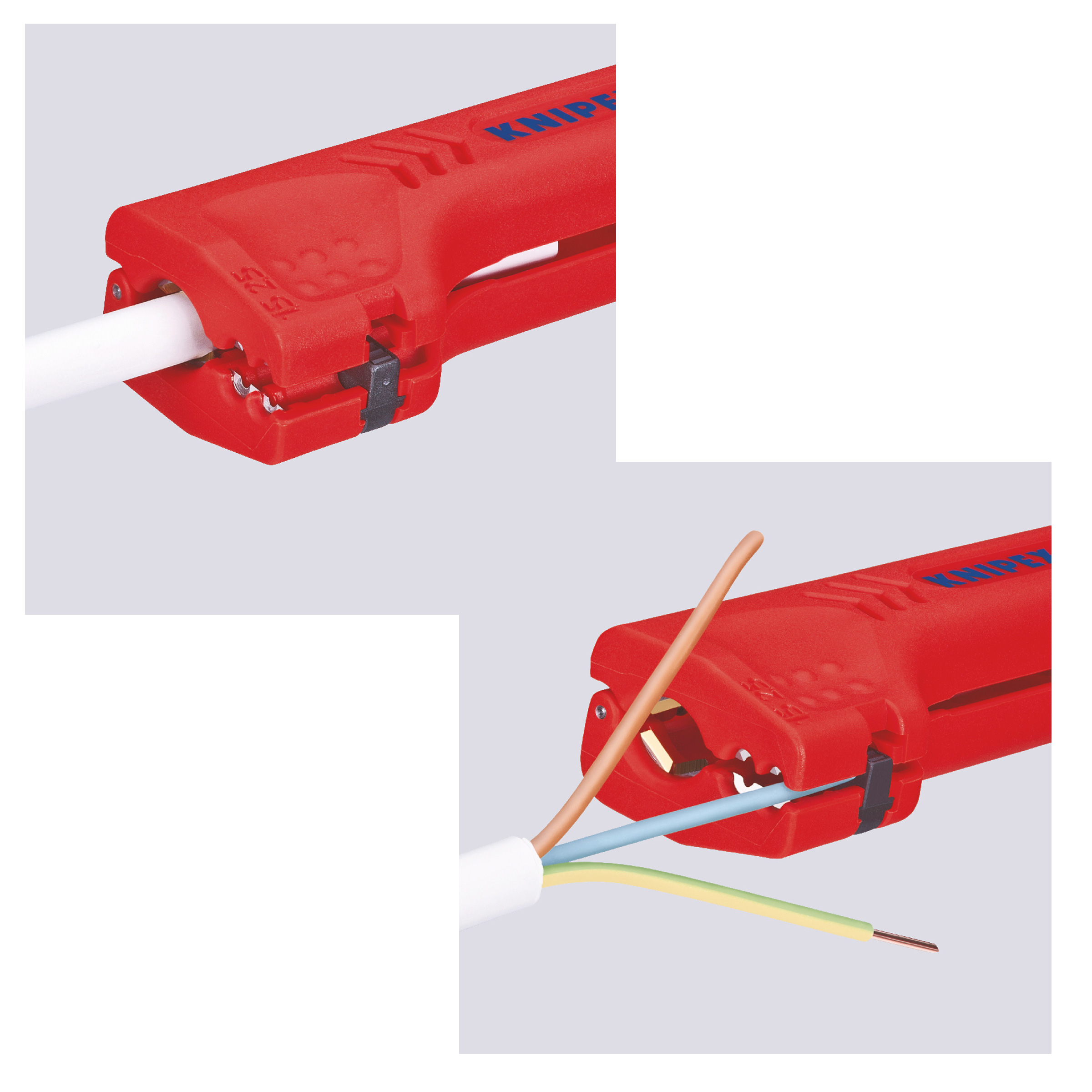

- Stripping device for conductors and strands 1.5 mm² and 2.5 mm²
- Two-way length stop (ideal for right and left-handers)
- Fastening device on the end of the handle (drop protection system)
Specification:
- Part number: 16 90 130 SB
- Dimensions: 130 x 88 x 32 mm
- Stripping capacities in square millimetres: 1.5 / 2.5 mm²
- Stripping capacities Ø: 8 – 13 mm
- Cable type: round cable, e.g.: 3 x 1,5 mm² up to 5 x 2,5 mm²
- Weight: 0.47kg
