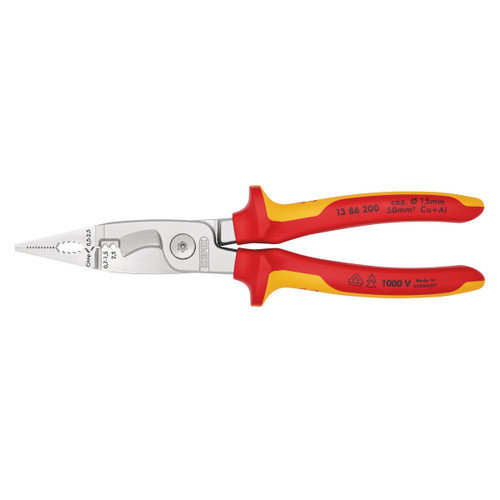

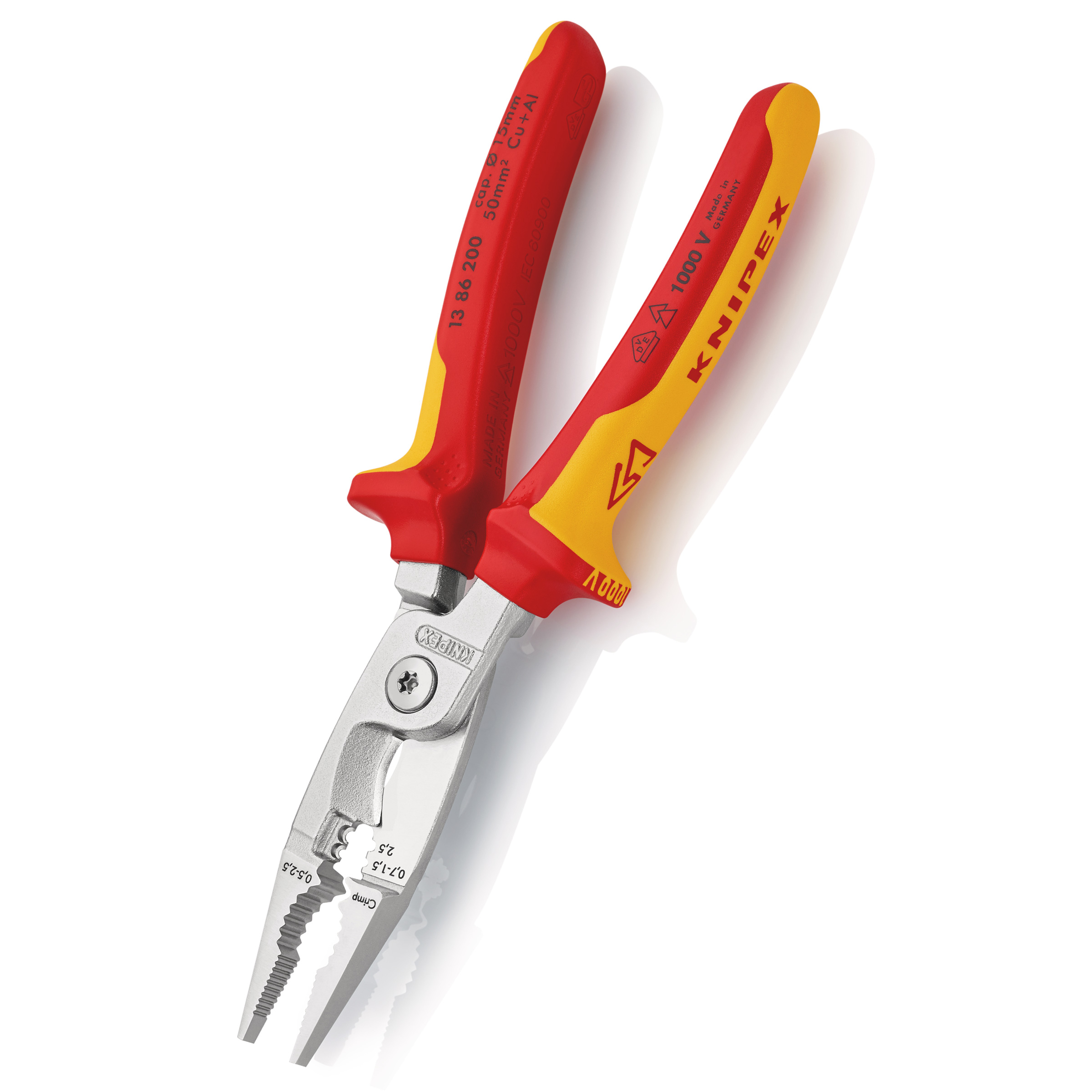

Knipex VDE Pliers for electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules

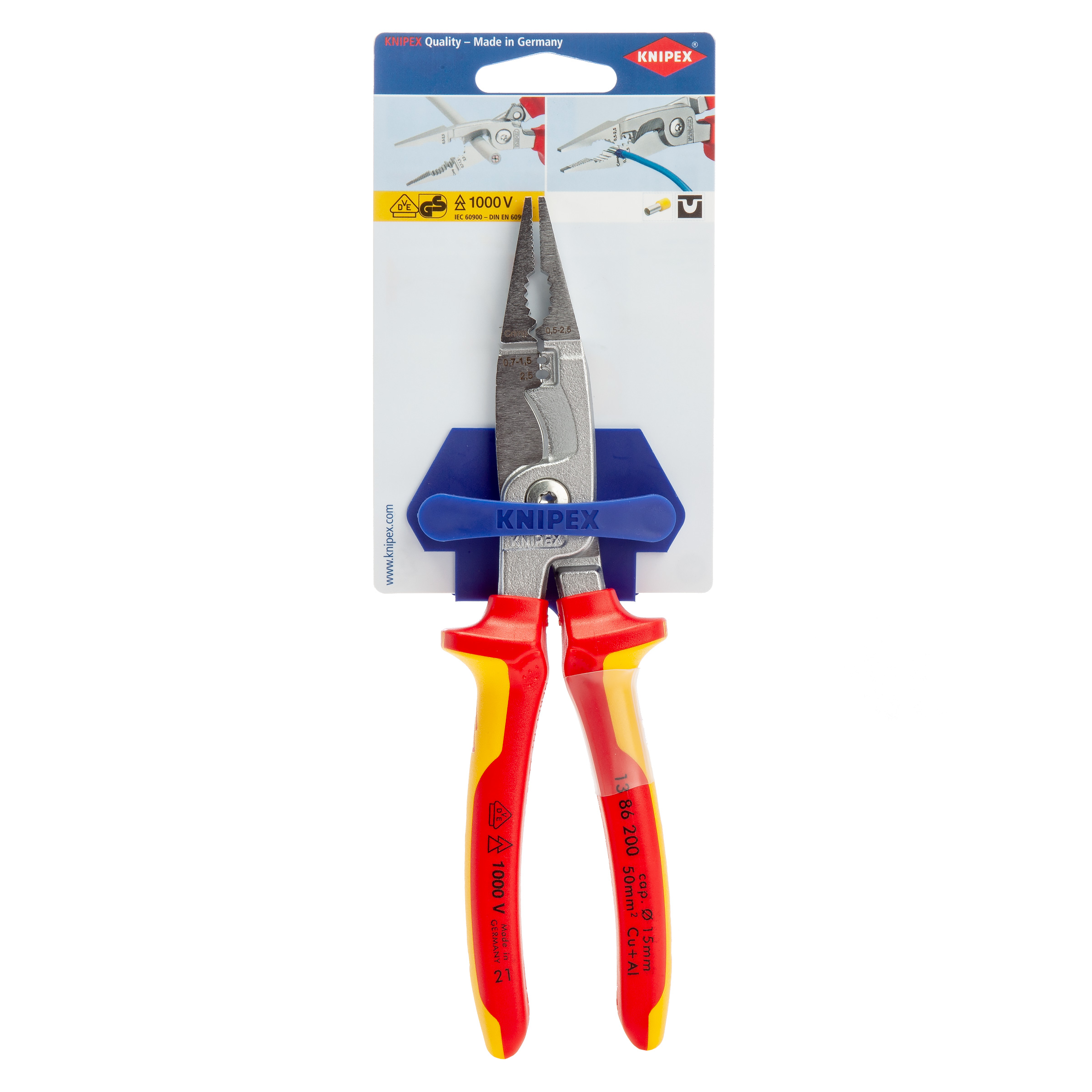

The Knipex 1386200SB (carded) Pliers are VDE tested to 1000V and have many functions, so there is no need to constantly change tools. Just one tool is adequate for the most important, recurring work steps in electrical installation. The electrical installation pliers save time, space and weight. At 200 mm long, they fit in any tool bag and weigh just 280g. The tip of the gripping surfaces of the installation pliers are smooth, so that single conductors can be held and positioned without being damaged. Profiled gripping surfaces and a pipe grip are available for flat and round materials. The induction hardened precision tips produce clean cuts on Cu and Al cables up to Ø 15 mm. The installation pliers are comfortable and safe to use thanks to their insulating multi-component grips – with the right training also on live parts.
Features:
- 6 functions in one pair of pliers

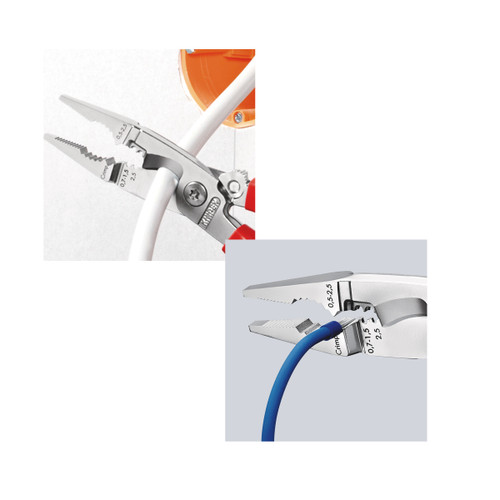

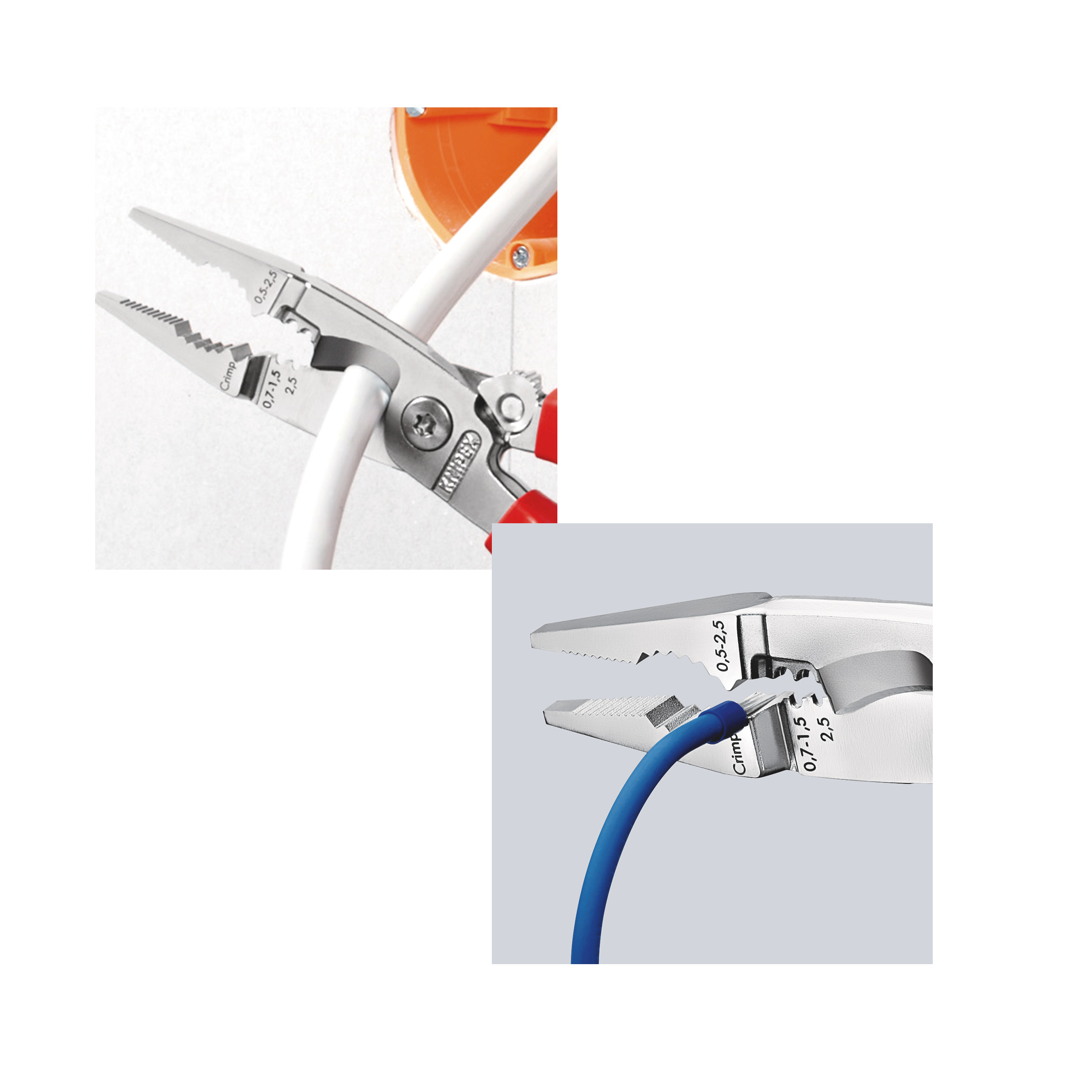

- Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
- Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
- Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²
- Crimping die for wire ferrules 0.5 - 2.5 mm²
- Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / dia. 15 mm
- Slim dimensions for easy access
- Bolted joint: precise, zero backlash operation of pliers
- High-grade special tool steel, forged, multi stage oil-hardened
Specification:
- Part number: 13 86 200
- Pliers: chrome plated
- Head: chrome plated
- Handles: insulated with multi-component grips, VDE-tested
- Dimensions: 200 x 85 x 20 mm
- Standard: DIN EN 60900 IEC 60900
- Cutting capacity copper cable, multiple-stranded: Ø 15 mm
- Cutting capacity copper cable, multiple-stranded: 50 mm²
- Stripping capacity for cross-sections: 0.75 — 1.5 mm² / 2.5 mm²
- Capacity in square millimetres: 0.5 — 2.5 mm²
- AWG: 1 / 0
- VDE tested: yes
- Weight: 0.28kg
